12.8V 200Ah LiFePO4
2,560Wh with a 200A BMS and an IP65 case. Charges from −20°C to 50°C. Discharge cuts off near −20°C. Bluetooth monitoring.
The step between the 100Ah and the 300Ah: weekend vans, small boats and home backup.
- Energy
- 2,560Wh
- Current
- 200A
- Inverter
- 2,560W
R12,250
- Charges from −20°C to 50°C. Discharge cuts off near −20°C.
- Recommended charge: 40A (0.2C). Use 14.2–14.6V.
- Warranty: Vatrer warranty — ask Danie for the term and claim conditions.

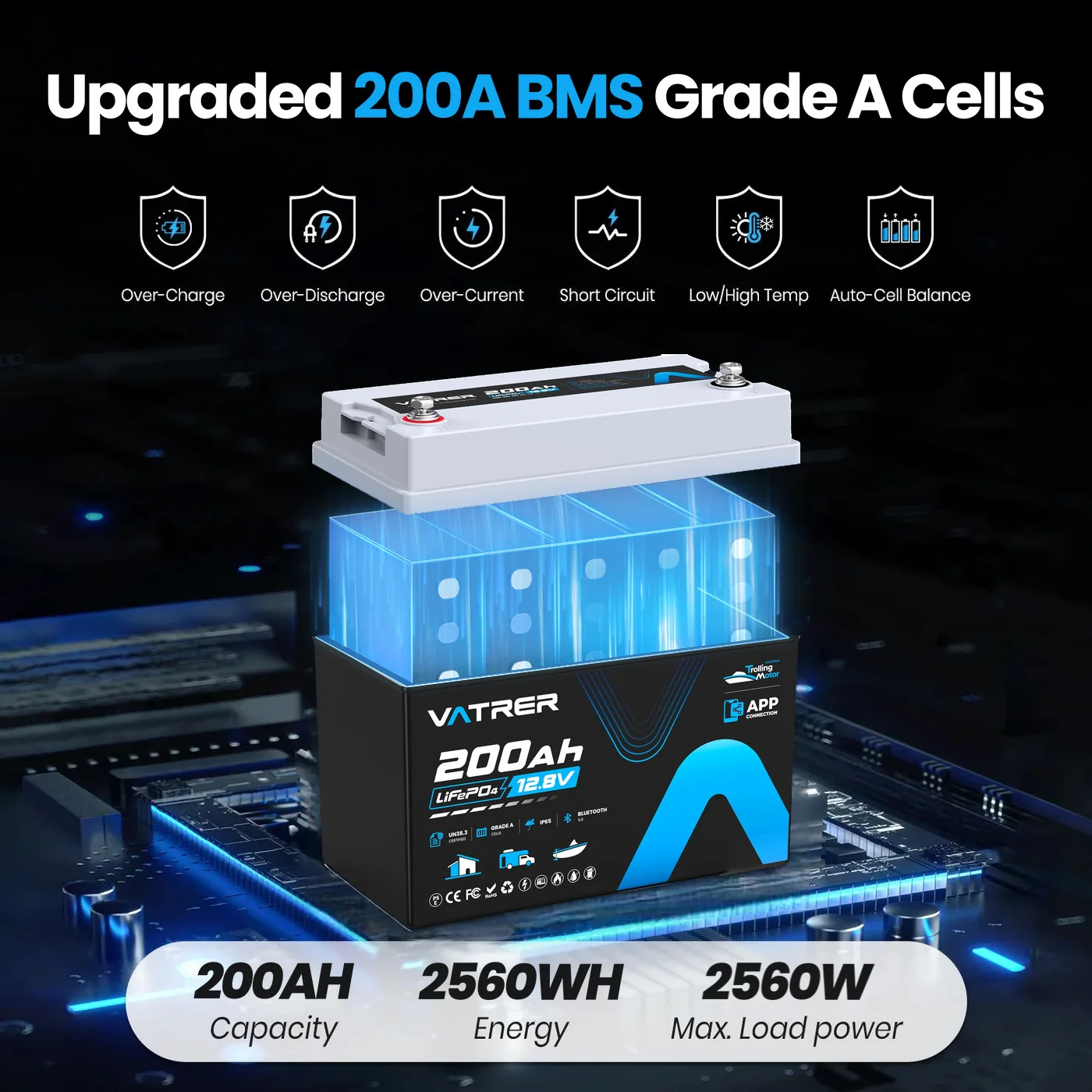

- Built-in 200A BMS & Low Temp Cutoff: Our battery is equipped with a built-in 200A Battery Management System (BMS) and Low Temp Cutoff, ensuring optimal performance and protection against overcharge, over-discharge, and short circuits. Say goodbye to worries and enjoy peace of mind.
- Unmatched Durability: Cycle life is 2,000–5,000 cycles (at rated conditions). IP65 rated against dust and water jets — do not submerge.
- Maintenance-Free and Lightweight: Bid farewell to tedious battery maintenance. Our lithium iron phosphate battery requires no maintenance, allowing you to focus on what matters most. Weighing just 17.5 kg, it's only 1/3 the weight of a lead-acid battery with the same capacity, making it easy to handle and install.
2,560Wh
Energy
2,560W
Max inverter load
17.5 kg
Weight
200A
Continuous BMS current
Warranty
Ask Danie for the term

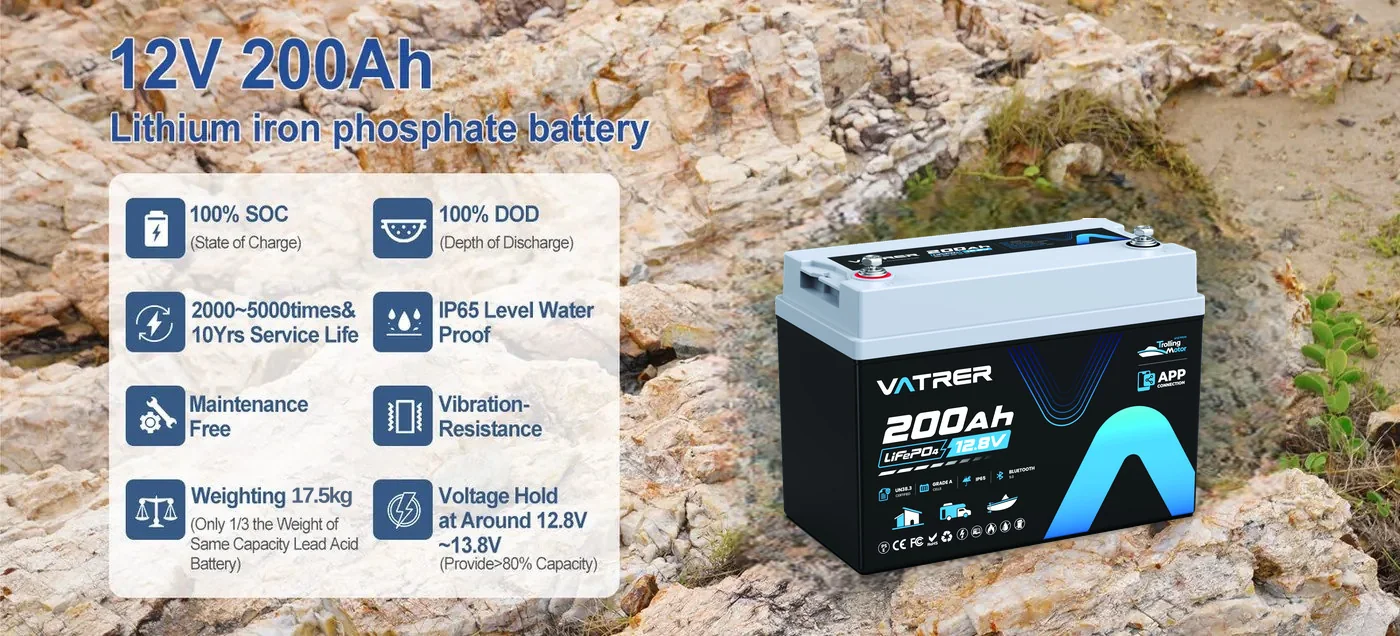

Vatrer 12V 200Ah Mini Lithium Battery: Unleash the Power!
Experience the pinnacle of battery technology with our Vatrer 12V 200Ah Mini Lithium Battery. This exceptional battery is packed with features that make it a standout choice for any application.
Versatile and Reliable
Whether you're using it for RVs, marine applications, solar systems, or any other power needs, our battery is designed to deliver. It's a true workhorse that will exceed your expectations.
3 Charging Methods
Our Vatrer 12V 200Ah Mini Lithium Battery is not only packed with incredible features but also offers multiple charging methods, ensuring flexibility and convenience for your power needs.

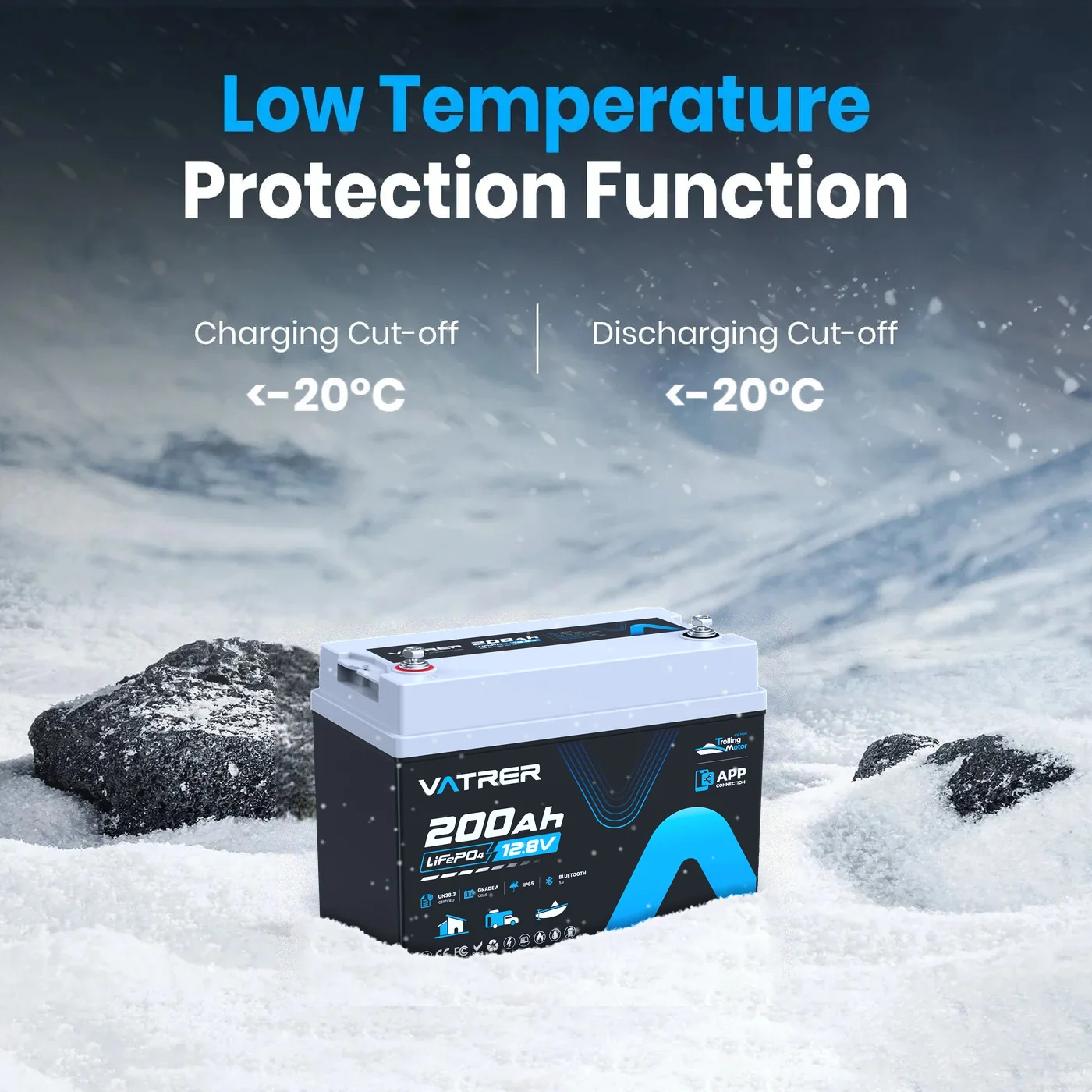

Smart Low Temp Cutoff Protection
Vatrer 12V 200Ah Mini Lithium Battery, designed to exceed your expectations with its smart features and low-temperature cutoff protection. Step into a new era of battery technology that offers unmatched performance and reliability.
Powering Your Journey with Vatrer 12V 200Ah Mini Lithium Battery
Are you ready to elevate your boating, fishing, camping, and off-grid experiences? Look no further than the Vatrer 12V 200Ah Mini Lithium Battery. With its built-in 200A BMS and low-temperature cutoff, this battery is specifically designed to meet the demands of various applications.
Tech specs
| Price | R12,250 |
|---|---|
| Nominal voltage | 12.8V |
| Charge voltage | 14.2V – 14.6V |
| Energy | 2,560Wh |
| Max continuous charge | 200A |
| Max continuous discharge | 200A |
| Recommended charge | 40A (0.2C) |
| Max inverter load | 2,560W |
| Terminals | M8 |
| Weight | 17.5 kg |

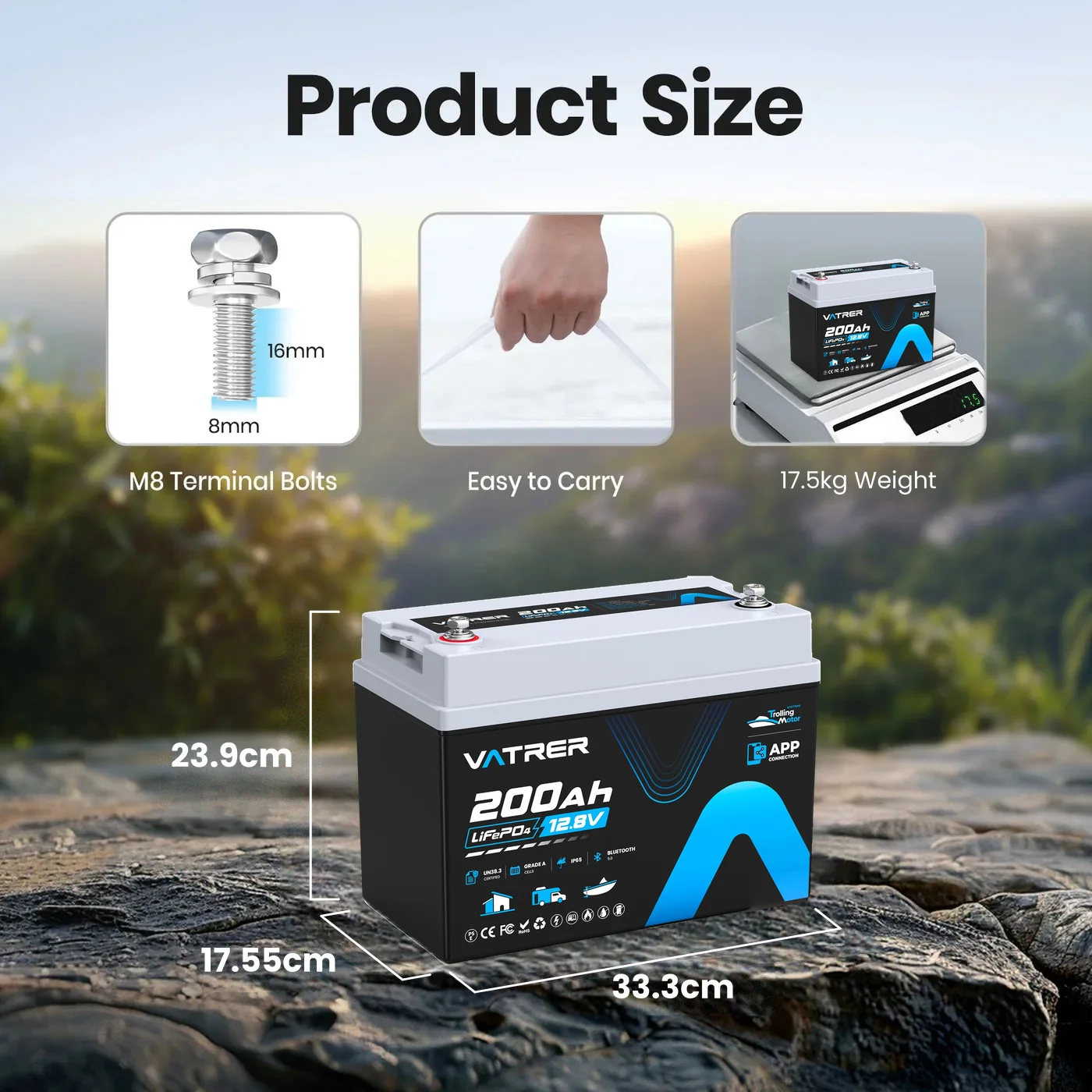

| Dimensions | 333 × 175.5 × 239 mm |
| Ingress | IP65 |
| Charge temperature | −20°C to 50°C. |
| Discharge temperature | −20°C to 60°C. Low-temp discharge cut-off −20°C ± 4°C. |
| Storage | −10°C to 50°C. |
| Warranty | Vatrer warranty — ask Danie for the term and claim conditions |
Charge it
- Lithium iron phosphate 4-string charger, 14.6V.
- Solar through an MPPT. Pick 12V (14.6V) LiFePO4 mode, or user mode and type the values from the table.
- An inverter that has a built-in AC-to-DC charger, on the same lithium profile.
- 40A (0.2C) — about 5 hours to 100%
- 100A (0.5C) — about 2 hours to 97%
Voltage right off the charger is not the resting voltage. Disconnect, wait 15 minutes, then measure.
MPPT values from this manual
| Charging limit voltage | 14.6V |
|---|---|
| Over-voltage disconnect | 15V |
| Over-voltage reconnect | 14.2V |
| Equalize charging voltage | 14V |
| Float charging voltage | 13.8V |
| Boost charging voltage | 13.8V |
| Boost reconnect voltage | 13.2V |
| Low-voltage disconnect | 10.8V |
| Low-voltage reconnect | 12.4V |
| Under-voltage warning | 11.6V |
| Under-voltage warning reconnect | 12V |
| Discharging limit voltage | 10.4V |
| Over-discharge disconnect | 10.4V |
| Over-discharge reconnect | 11.6V |
| Over-discharge delay | 0.8s |
| Equalize duration | 120 min |
| Boost interval | Not suitable for lithium batteries |
| Boost duration | 120 min |
Cold weather
Charges from −20°C to 50°C. Discharge cuts off near −20°C.
Charge: −20°C to 50°C.
Discharge: −20°C to 60°C. Low-temp discharge cut-off −20°C ± 4°C.
Bank wiring
Up to 4 in series (48V class) and no more than 4 in parallel. Same model, same brand, bought within a month, voltages matched.
Charge each battery alone, then parallel them for 12–24 hours before the final series or parallel layout. Full connection notes
Bluetooth 5.0. The manual includes app connection and monitoring instructions.
BMS
The enclosed BMS covers over-charge, deep discharge, overload, overheating, short circuit and a low self-discharge rate. It disconnects if the inside of the battery reaches 75°C. It also disconnects if a single cell goes above 3.65V or below 2.5V. Below 13.8V it will not show as full. If the BMS has opened, remove the load and rest it for 30 minutes, then fully charge. If it is too flat to accept a charge, use a charger that can start from 0V, or parallel another 12V lithium (or a lead-acid between 12V and 14.6V) for about a minute, then fully charge.
