Batteries / 12.8V 100Ah
All-purpose · home, RV, boat

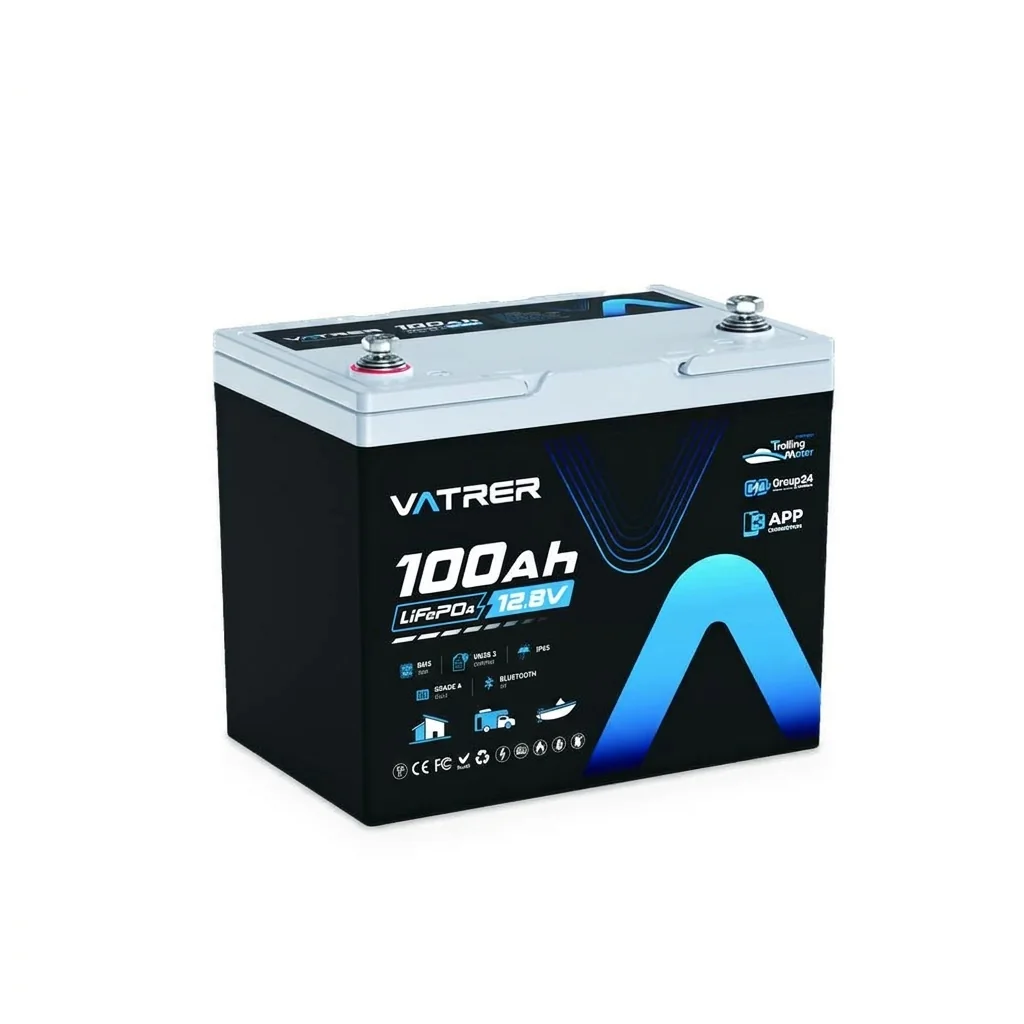

12.8V 100Ah LiFePO4
The compact pack in this range. 1,280Wh, 150A BMS printed on the case, IP65, low-temperature cut-off. A direct swap for a lead-acid house battery when the load is lights, a small fridge, pumps and charging.
Short trips, small boats, and a modest home backup for lights, a router and a fridge through a short outage.
- Energy
- 1,280Wh
- Current
- 150A
- Inverter
- 1,920W
R7,950
- Charge cuts off near 0°C. Discharge cuts off near −20°C. No self-heating.
- Recommended charge: 20A (0.2C). Use 14.2–14.6V.
- Warranty: Vatrer warranty — ask Danie for the term and claim conditions.
- Low Temperature Smart Power Off: Stops charging near 0°C and stops discharging near −20°C, then resumes automatically when the battery warms up.
- Over 5,000 Charge Cycles: More than 5,000 cycles (at rated conditions).
- 1,280Wh Energy Capacity: Power your adventures with a robust 1,280Wh capacity, perfect for RV camping or home energy storage.
1,280Wh
Energy
1,920W
Max inverter load
9.2 kg
Weight
150A
Continuous BMS current
Warranty
Ask Danie for the term
Reliable Power for Your Adventures

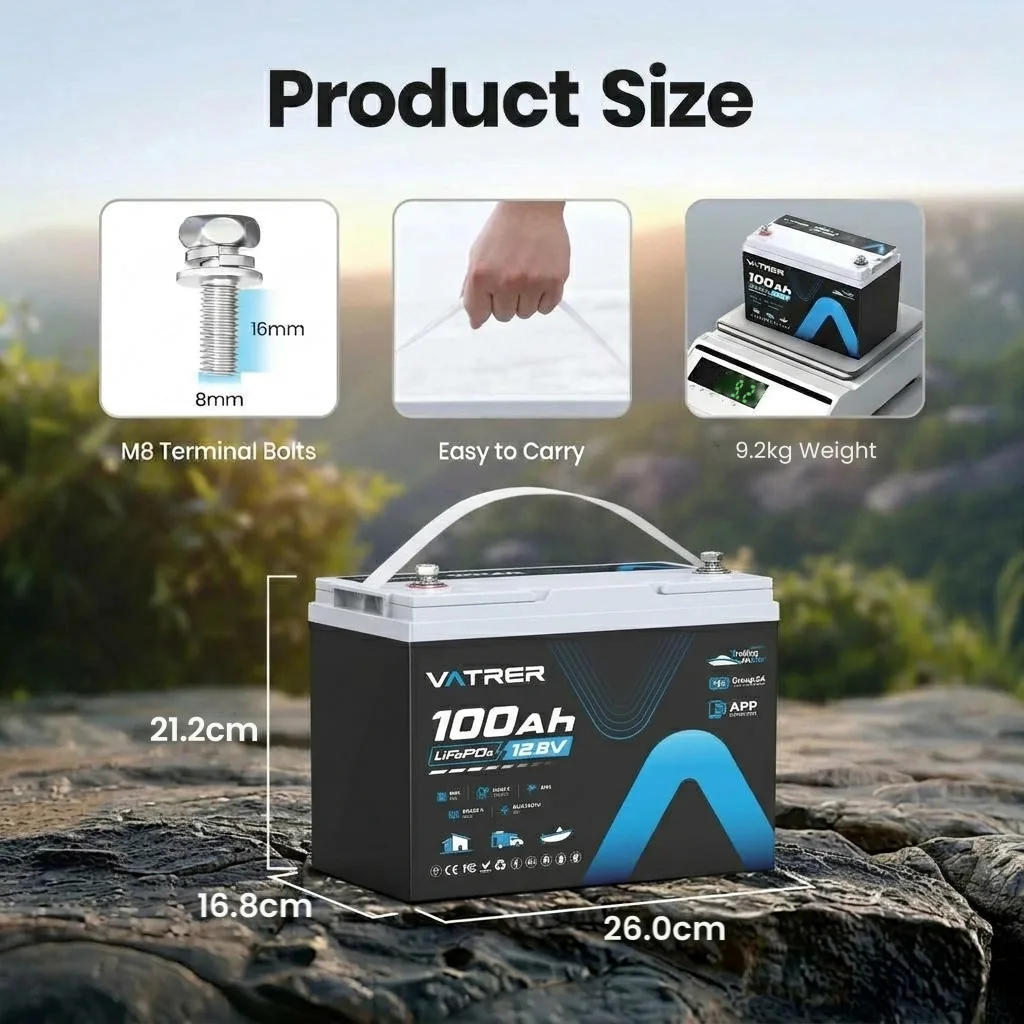

If you're looking for a reliable lithium battery to power your RV, solar system or off-grid system, this 12V 100Ah battery is a compact, lightweight option with low-temperature power-off protection, making it ideal for outdoor enthusiasts and home users. Weighing 9.2 kg and measuring 260 × 168 × 212 mm, this 12V 100Ah lithium battery allows for easy installation in confined spaces such as RV cabins or solar installations, making it an ideal alternative to bulky lead-acid batteries.
Long-Lasting Performance and Advanced Safety
This 12V 100Ah lithium battery is equipped with multiple features. It uses high-quality Grade A LiFePO4 cells, has a capacity of 1280Wh, and the case is marked 150A BMS (about 1,920W). It can withstand more than 5,000 charge cycles (at rated conditions). The BMS covers overcharge, over-discharge, overcurrent and short circuit, plus low-temperature and high-temperature protection.
Low-Temperature Protection for Cold Climates
This 12V 100Ah battery features an advanced low-temperature power-off function, ensuring stable operation even in cold environments. When the temperature drops below 0°C, the battery stops charging to prevent damage; when the temperature drops below −20°C, the battery stops discharging; and once the temperature rises above 5°C, the battery resumes charging. This intelligent design ensures safety and extends battery life, making it the preferred power source for RV camping, off-grid living, or any cold environment.
Scalable Capacity for Your Needs

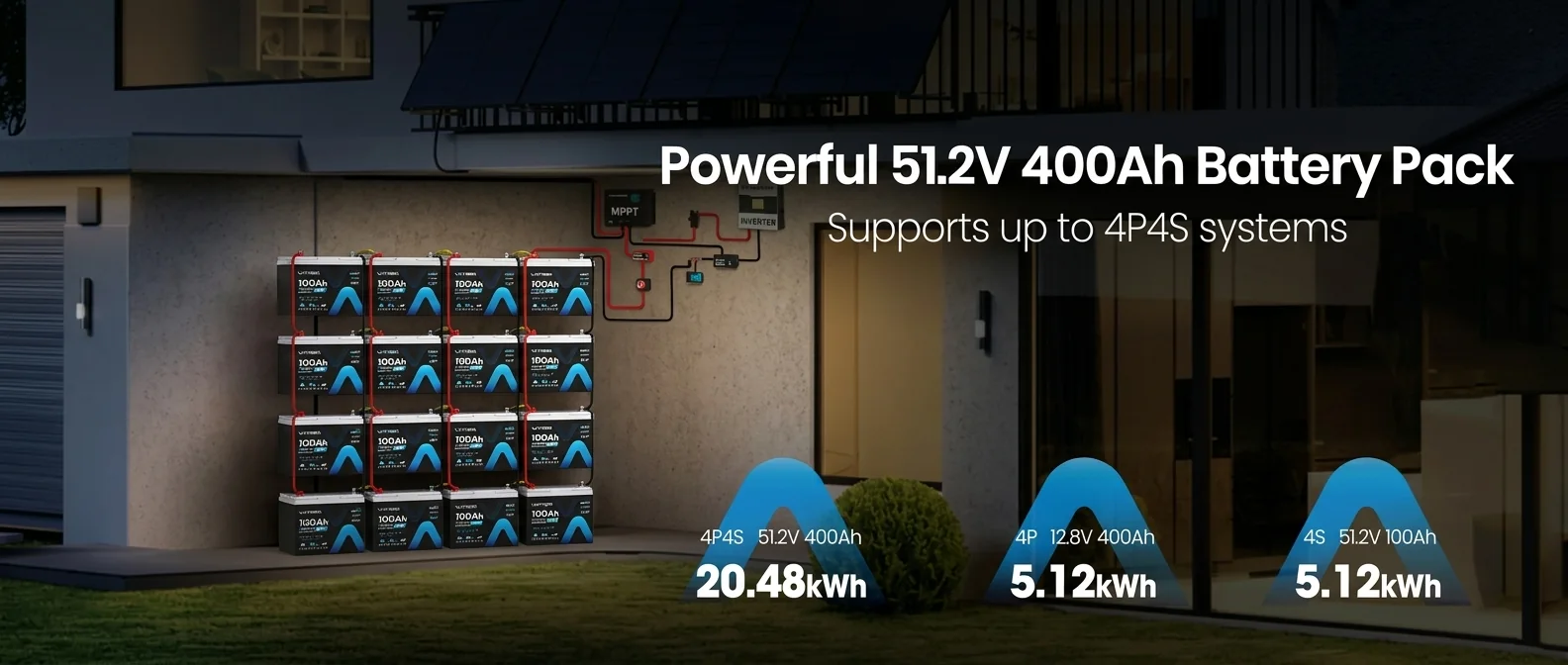

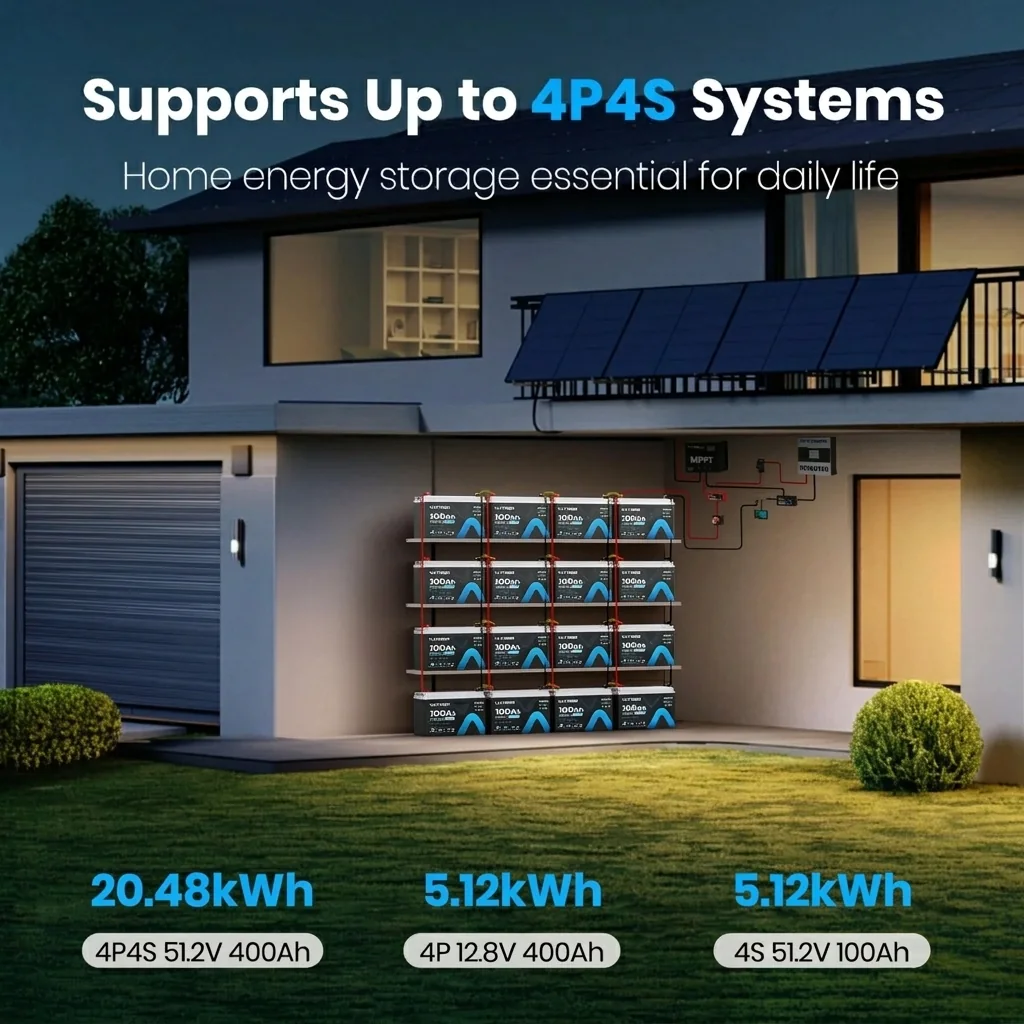

If you require higher power output, this 12V 100Ah battery supports a 4S4P extended design, allowing it to be configured as a 51.2V 400Ah system (capacity up to 20.48kWh) or as a 12.8V 400Ah (5.12kWh) or 51.2V 100Ah (5.12kWh), making it flexible for use in large-scale solar or home energy systems.
Enjoy Flexible Charging Options
This 12V 100Ah battery offers three flexible charging options, and you can monitor the charging process via Bluetooth. At 0.2C (20A) a full charge takes about 5 hours. At 0.5C (50A) it reaches about 97% in about 2 hours. A generator needs a LiFePO4 AC charger. Vehicle charging uses a DC-to-DC charger.
Power a Range of Applications with Ease
This 12V 100Ah battery, with its compact size and low-temperature power-off capability, is easy to install and use in cold weather, allowing you to expand your field of vision and check battery status at any time. For RV enthusiasts, Recharge it every 3 months if it is stored. For home energy storage, it can provide longer-lasting power for household appliances, while for marine use, it can power electric propulsion systems.
Choose Vatrer for Your Energy Needs
Ready to embark on your journey with peace of mind? Vatrer Battery boasts over 10 years of experience in lithium-ion battery innovation, offering a variety of batteries, including the 12V 100Ah battery, equipped with low-temperature power-off functionality, all designed to meet your energy needs. See the difference reliable power makes to your adventures!
Tech specs
| Price | R7,950 |
|---|---|
| Nominal voltage | 12.8V |
| Charge voltage | 14.2V – 14.6V |
| Energy | 1,280Wh |
| Max continuous charge | 150A |
| Max continuous discharge | 150A |
| Recommended charge | 20A (0.2C) |
| Max inverter load | 1,920W |
| Terminals | M8 |
| Weight | 9.2 kg |
| Dimensions | 260 × 168 × 212 mm |
| Ingress | IP65 |
| Charge temperature | 0°C to 50°C. Low-temp charge cut-off 0°C ± 4°C. |
| Discharge temperature | −20°C to 60°C. Low-temp discharge cut-off −20°C ± 4°C. |
| Storage | −10°C to 50°C. |
| Warranty | Vatrer warranty — ask Danie for the term and claim conditions |
Charge it
- Lithium iron phosphate 4-string charger, 14.6V.
- Solar through an MPPT. Pick 12V (14.6V) LiFePO4 mode, or user mode and type the values from the table.
- An inverter that has a built-in AC-to-DC charger, on the same lithium profile.
- 20A (0.2C) — about 5 hours to 100%
- 50A (0.5C) — about 2 hours to 97%
Voltage right off the charger is not the resting voltage. Disconnect, wait 15 minutes, then measure.
MPPT values from this manual
| Charging limit voltage | 14.6V |
|---|---|
| Over-voltage disconnect | 15V |
| Over-voltage reconnect | 14.2V |
| Equalize charging voltage | 14V |
| Float charging voltage | 13.8V |
| Boost charging voltage | 13.8V |
| Boost reconnect voltage | 13.2V |
| Low-voltage disconnect | 10.8V |
| Low-voltage reconnect | 12.4V |
| Under-voltage warning | 11.6V |
| Under-voltage warning reconnect | 12V |
| Discharging limit voltage | 10.4V |
| Over-discharge disconnect | 10.4V |
| Over-discharge reconnect | 11.6V |
| Over-discharge delay | 0.8s |
| Equalize duration | 120 min |
| Boost interval | Not suitable for lithium batteries |
| Boost duration | 120 min |
Cold weather
Charge cuts off near 0°C. Discharge cuts off near −20°C. No self-heating.
Charge: 0°C to 50°C. Low-temp charge cut-off 0°C ± 4°C.
Discharge: −20°C to 60°C. Low-temp discharge cut-off −20°C ± 4°C.
Bank wiring
Up to 4 in series (48V class) and up to 10 in parallel only. Max 4S4P combined. Same model, same brand, bought within a month, voltages matched.
Charge each battery alone, then parallel them for 12–24 hours before the final series or parallel layout. Full connection notes
Bluetooth 5.0. The manual includes app connection and monitoring instructions.
BMS
The enclosed BMS covers over-charge, deep discharge, overload, overheating, short circuit and a low self-discharge rate. It disconnects if the inside of the battery reaches 75°C. It also disconnects if a single cell goes above 3.65V or below 2.5V. Below 13.8V it will not show as full. If the BMS has opened, remove the load and rest it for 30 minutes, then fully charge. If it is too flat to accept a charge, use a charger that can start from 0V, or parallel another 12V lithium (or a lead-acid between 12V and 14.6V) for about a minute, then fully charge.
